Lifan 1025

LF1025 is a two-row mini truck developed on the basis of mini-van Seasion. Compared with the same-class competitors, LF1025 has bigger room, stronger load bearing and power, which will turn out to be the best reliable business partner for overseas customers.

+

SAFETY

5029 Safety

The broader the wheel track is, the higher the stability will be. The broadened front/rear wheel track can prevent the sidesway during turning operation, so the safety is enhanced.

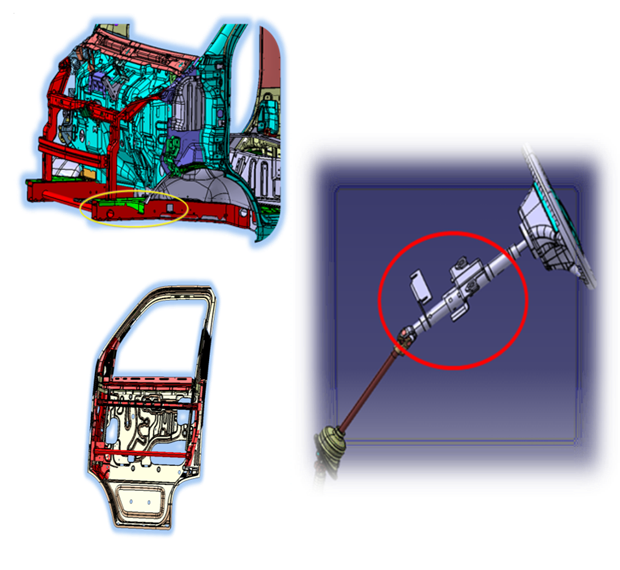

The longitudinally positioned impact absorbing structure used in cars is adopted, and 6 impact absorbing grooves are arranged at the front end of the beam, which can absorb the impact energy in sequence. Ensure the safety of drivers and passengers to the largest extent.

High strength integral body construction is adopted, and high-tension steel plates are widely used; the welding robots ensure high precision in welding process, so the body structure has the strongest impact resistance and deformation prevention capability. The impact resistance capability is enhanced by a large margin.

The reinforced chassis technology improves the load bearing capacity and safety of the minivan。The cross beam is pressed into shape with 2.0mm steel plate (traditional minivan uses 1.4mm cross beam ); the cross-section thickness of the front, middle and rear sections of the beam are 68 mm, 70 mm and 72 mm; The floor cross beam is pressed with 1.6mm steel plate (traditional minivan uses 1.0mm steel plates).

The hazards of drifting, sideslipping and loss of steering control can be prevented and the braking length is shorted effectively, ensuring safety in braking.

The special automobile steel plate with double-sided galvanization is used in the doors, and with integral pressing and forming in once instance, the doors are thicker and firm; with the embedded double impact resistance crossbeams in the doors, safety is doubly ensured.

When the automobile is hit with strong impacting force, the steering column will absorb the impact energy and slide and break in an instant, avoiding injury to the driver. The retractable steering column is safer and more reliable, so the driving and riding safety is enhanced.

STRONG 1.299L, Q SERIES ENGINE

1022 Strong Q Series Engine

The engine of LF1025 equips the one of LF479Q5 which is one of the Q series jointly developed by LIFAN and the most influential engine developer-Ricardo Corporation UK, has an arrangement of in-line, four cylinders, 16 valves, double overhead camshaft and MPI and has characteristics of small size, light weight, compact structure, high cost performance, high part compatibility, smooth intake/exhaust, higher combustion ratio, high power and low fuel consumption. The power rating can reach 68.5kW, the maximum torque is 112Nm, and the power per liter can reach the amazing 52.5kW.

The five-speed manual transmission adopts the sophisticated three-cone synchronizer, which enhances the synchronizing torque and shortens the synchronizing time. The gear shifting process is simple and easy, and the shifting result is clear and smooth--BMW also utilizes this technology. With this technology, driving is full of fun.

+

FASHIONALE APPERANCE

1022 Appreance

The double U-shaped frontal style is fashionable, masculine and dynamic, highlighting owner's optimistic life attitude. It's not only a vehicle, but also a living attitude.

Use the most popular water drop-shaped crystal headlight, plus black frame; look more masculine, unique and wiser. Meanwhile, the eagle eye headlight has higher luminance and wider shining angle. Even in the complex countryside road, night drive is also quite safe.

The unique shape of the European-style front grille gives prominence to the wide body appearance and enhances the ventilation effect on the water tank; when the heat dispersion is improved, the working efficiency of the engine will get better.

The unique rhombohedral crystal front fog lamp with sporty element is adopted, which ensures a high penetrating capability with more focused beams. It is safer to drive in evening and rainy/foggy days.

Wide adjustable external rearview mirrors similar to that of high-end cars are utilized, so fashionable standard is ensured while its convenient usability in turning , when overtaking changing lanes, it can help to tell the conditions at the back and flanks, thus ensuring safety.

The front windshield with the brand of Fuyao glass has characteristics of beautiful appearance and high impact resistance, so it helps to improve the comfortableness and safety during travelling.

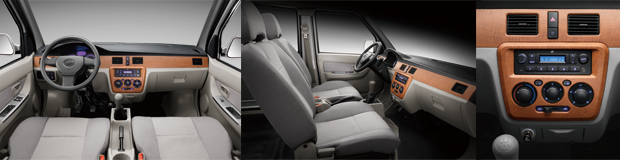

The design of the inner trimmings of LF1025 adopts sedan inner trimmings that are internationally modish, and the dark grey quasi-carbon fiber instrumental panel highlights the sporty element whereas the light cream-colored shade creates a fresh and comfortable riding space. The internal space is elegant, cozy and sporty.

The innovative design of the T-shaped instrument panel with dark grey upper part and light cream color lower part is adopted, which is not only simple and streamlined but also dynamic and harmonious. The multifunction keys on the central dashboard are easy to operate as they are driver-centered. The environment-friendly PP material is in accord with the environment protection cause, giving the driver a green driving environment.

Adopt the strip–type dynamic aluminum alloy wheels with sportive sense.

1022 Cargo Loading

BIG SPACIOUS CABIN

Enlarged inner space, five seats of two rows, with demand of seating and carrying goods. Extra large space for more comfortable driving and riding, with easy loading.

Extra large container: widened and heightened container board, of which the dimension is 2000mm×1542mm×351mm, with more space for loading.
